Copper Substrate COB UV LED Module 200W High Power 365nm 385nm 395nm

Product Categories
shenzhen yuanming co., ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

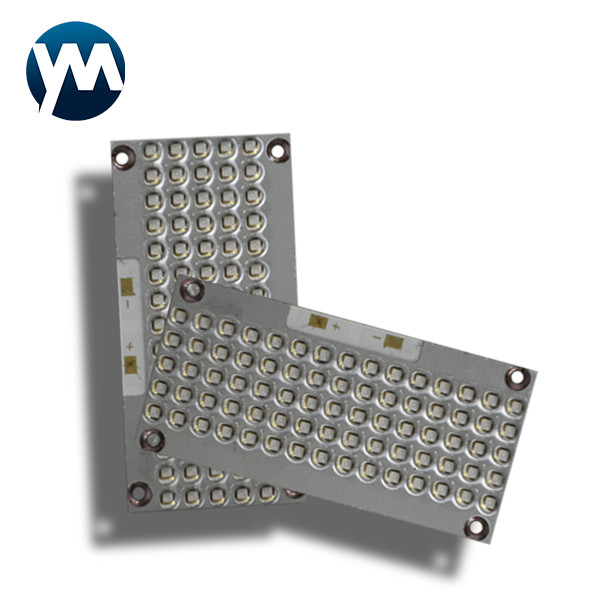

Copper Substrate COB UV LED Module 200W High Power 365nm 385nm 395nm

  • 1
  • 2

Brand Name : YM

Model Number : UV LED COB Module 6230

Certification : High-tech Enterprise Certificate

Place of Origin : CHINA

MOQ : Negotiate

Price : Negotiate

Payment Terms : T/T

Supply Ability : 100000

Delivery Time : 7-10 work days

Packaging Details : Carton

Name : COB UV LED Module 6230

Size : 62mm*30nm*3.0mm

Voltage : 51-57V

Current : 2.5-3.5A

Contact Now

COB UV LED Module 200W High Power COB Module 365nm 385nm 395nm 405nm

COB UV LED Module Product Description

The UV LED module can be water-cooled or air-cooled.
Various powers, sizes and circuits can be customized according to your requirements, including mixed wavelengths.
UV LED lamp beads are consumables. Please use the lamp beads reasonably to extend the service life,
so as not to burn the lamp beads when the current and voltage are too high.
It is suitable for curing of various UV printing industries, paints, UV inks, UV glues, and touch screens.
Specification of COB UV LED Module
Product Name COB UV LED Module 6230
Power 200W
Color UV
Number of lamp beads 75 pcs
Diode type COB smd
Lens Material of Diode quartz
View Angle of the Lens 60, 120 degree

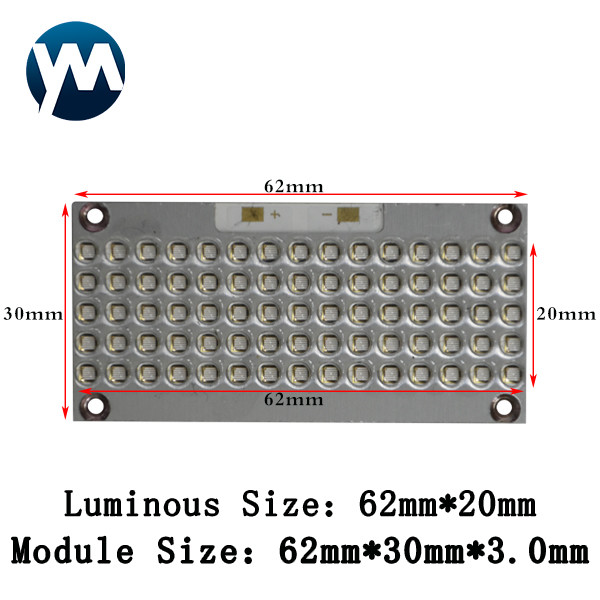

Module size 62mm*30nm*3.0mm
Luminous Size 62mm*20mm
Wavelength 365nm,385nm,395nm,405nm
Voltage 51-57V
Current 2.5-3.5A
Chip Material LG,Seoul,Epileds
Encapsulation process High temperature quartz lens package lamp beads
Module material 3.0mm COB Copper substrate
Lifespan (hours) 20000-30000
Warranty 2 years
Application Apply in various UV printing industries, painting,
Place of Origin Shenzhen, Guangdong, China

Copper Substrate COB UV LED Module 200W High Power 365nm 385nm 395nmCopper Substrate COB UV LED Module 200W High Power 365nm 385nm 395nm

why choose us

1. Well-known chip material

2. 99.99% gold wire bonding

3. 2 years warranty

4. Over 10 years work experience technical service team

5. 24 hours service Professional sales team

6. Free Sample is available

7. Fast delivery

8.100% QC inspection Before Shippment

9. Aiming at the consult of "high quality, zero defect”, give you the best quality, best service.

If you have other needs, please contact us to provide you with the best solution.

Thank you for your attention.
